RFID 134.2K模組 FDX-B 耳標射頻 ISO 11784/11785免費軟體
遠距離134.2K 讀卡模組，大批量成熟穩定產品，批量供貨穩定， 經過多年市場驗證。
支援FDX-B, ISO11784/85協定，可以讀取EM4305，Hitag，EM1001，TK4100等標籤
使用者無需理解複雜的讀卡協定，僅需要提供電源，即可接收串口輸出的卡號，
可以大幅縮短開發時間。批量價格可議。
模組自帶讀卡提示燈，多組可選微調諧振電容。

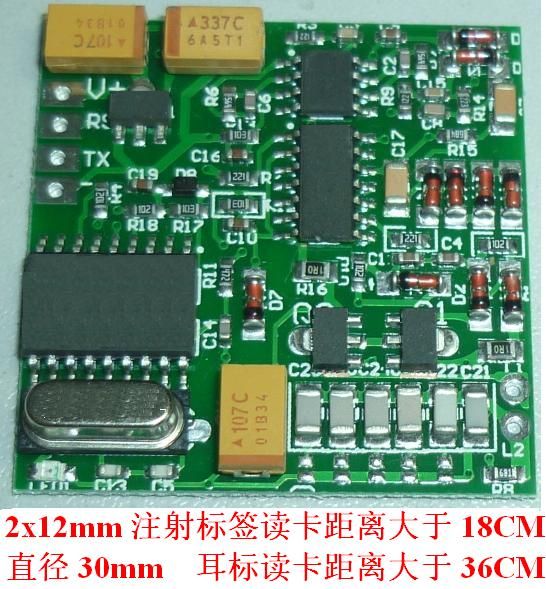

模組具有優異的讀卡性能，使用97X97mm天線時2X12mm注射式玻璃管標籤距離大於18CM，
直徑30mm標準耳標距離大於36CM。
預設贈送97X97mm天線，另有直徑65mm圓形或直徑130mm圓形可選（每個加5元），支援自製任意大小形狀天線。
100%不漏讀卡，非常適合要求高的工業場合，
如工業機器人導航，動物管理，手持閱讀器，信鴿競速，養殖場，狗體內注射標籤讀取，生產線自動化 ，設備巡檢，自動售貨等等應用。
模組尺寸：35X36mm
工作電壓：5~9V
工作電流：120mA
The long-distance 134.2K card reader module is a mature and stable product in large quantities, and the supply is stable in batches. It has been verified by the market for many years.
Support FDX-B, ISO11784/85 protocol, can read EM4305, Hitag, EM1001, TK4100 and other tags
The user does not need to understand the complex card reading protocol, and only needs to provide power to receive the card number output by the serial port.
Development time can be drastically reduced.
Bulk price is negotiable.
The module comes with a card reading prompt light, and multiple sets of optional fine-tuning resonant capacitors.
The module has excellent card reading performance.
When using a 97X97mm antenna, the distance between the 2X12mm injection glass tube label is greater than 18CM.
The distance between standard ear tags with a diameter of 30mm is greater than 36CM.
A 97X97mm antenna is provided as a gift by default, and a round diameter of 65mm or a round diameter of 130mm is optional (additional charge), and self-made antennas of any size and shape are supported. 100% non-missing card reading, very suitable for demanding industrial occasions, Such as industrial robot navigation, animal management, handheld readers, pigeon racing, farms, dog injection label reading, production line automation, equipment inspection, vending and other applications.
Module size: 35X36mm
Working voltage: 5~9V Working current: 120mA
Package:
- 1 x module
- 1 x antenna
- 2 x tags
| SKU | UHFAT13 |
|---|---|
| Weight | 1.000000 |
| Customizable | Yes |
| With Built-in Battery | No |
| Warranty | 1 Year Warranty |
| Country Specific | Universal |
| selling_potential | 3 |
| Minimum Order Quantity | No |
| Description | 遠距離134.2K 讀卡模組，大批量成熟穩定產品，批量供貨穩定， 經過多年市場驗證。 支援FDX-B, ISO11784/85協定，可以讀取EM4305，Hitag，EM1001，TK4100等標籤 使用者無需理解複雜的讀卡協定，僅需要提供電源，即可接收串口輸出的卡號， 可以大幅縮短開發時間。批量價格可議。 模組自帶讀卡提示燈，多組可選微調諧振電容。 模組具有優異的讀卡性能，使用97X97mm天線時2X12mm注射式玻璃管標籤距離大於18CM， 直徑30mm標準耳標距離大於36CM。 預設贈送97X97mm天線，另有直徑65mm圓形或直徑130mm圓形可選（每個加5元），支援自製任意大小形狀天線。 100%不漏讀卡，非常適合要求高的工業場合， 如工業機器人導航，動物管理，手持閱讀器，信鴿競速，養殖場，狗體內注射標籤讀取，生產線自動化 ，設備巡檢，自動售貨等等應用。 模組尺寸：35X36mm 工作電壓：5~9V 工作電流：120mA The long-distance 134.2K card reader module is a mature and stable product in large quantities, and the supply is stable in batches. It has been verified by the market for many years. Support FDX-B, ISO11784/85 protocol, can read EM4305, Hitag, EM1001, TK4100 and other tags The user does not need to understand the complex card reading protocol, and only needs to provide power to receive the card number output by the serial port. Development time can be drastically reduced. Bulk price is negotiable. The module comes with a card reading prompt light, and multiple sets of optional fine-tuning resonant capacitors. The module has excellent card reading performance. When using a 97X97mm antenna, the distance between the 2X12mm injection glass tube label is greater than 18CM. The distance between standard ear tags with a diameter of 30mm is greater than 36CM. A 97X97mm antenna is provided as a gift by default, and a round diameter of 65mm or a round diameter of 130mm is optional (additional charge), and self-made antennas of any size and shape are supported. 100% non-missing card reading, very suitable for demanding industrial occasions, Such as industrial robot navigation, animal management, handheld readers, pigeon racing, farms, dog injection label reading, production line automation, equipment inspection, vending and other applications. Module size: 35X36mm Working voltage: 5~9V Working current: 120mA Package:
|
| Condition | New |
