SMA connector 7x7cm passive 900mhz epc gen2 uhf reader antenna middle 3dbi micros Ceramics uhf rfid tag Antenna

SKU
ZKANTC7070
Overview

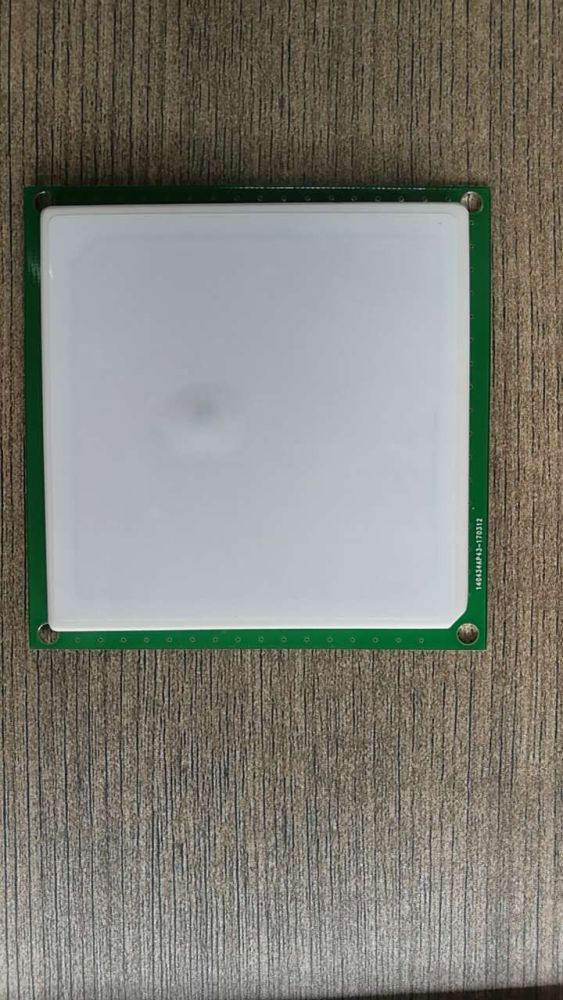

sma connector 7x7cm passive 900mhz epc gen2 uhf reader antenna middle 3dbi micros Ceramics uhf rfid tag Antenna

Features:

  1. length for Antenna feeder line:3m,read distance:2m,used for electronic racks,product real-time location monitoring and tracking,etc.UHF RFID.
  2. Dimension of antenna: 61 x 61 x 6mm
  3. Dimension of PCB Board: 70 x 70mm
  4. Connector: SMA (with options)
  5. Gain:4.9dBi
  6. Frequency range:902-928MHz with middle at 922.5 MHz (can be customized as required.)
  7. Polarization: Linear polarized RHCP
  8. Voltage Standing wave ratio(VSWR):  <1.5
  9. Thunder and lightning prevention: direct grounding.
  10. Cable RG174
  11. Input impedance: 50Ω
More Information
SKU ZKANTC7070
Weight 0.500000
With Built-in Battery No
